Drills & Drivers

Pneumatic screw guns and drills for production assembly, cabinet installation, and structural fastening applications.

Screw Guns

Air-Powered · Driver
TH-T-618 Screw Gun

Compact positive-clutch screw gun with setable torque adjustment under the nose of the tool for dialing in the right drive depth by fastener size. Reverse button positioned on top for fast directional changes without repositioning grip. Drives 2″–6″ screws and lag bolts.

RPM 2,200
Hex ¼″ Quick Change
Air Inlet ¼″
OAL 9½″
Height 5¾″
Drives 2″–6″ Screws & Lags
  • ¼″ Hex Quick Change chuck
  • Reverse button on top of tool
  • High torque for long fasteners
  • Torque adjustment under nose
TH-T-618 Screw Gun

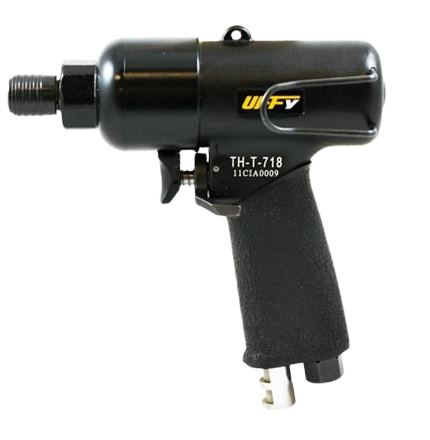

TH-T-718 Series Screw Gun — Hi Torque

Twin-hammer impact driver series with a 6-vane hardened rotor for long service life. Balanced ergonomic form reduces operator fatigue on high-volume production runs. All three models share the same mechanical platform — differentiated by free speed, torque output, and speed-control configuration. A speed-adjust knob kit is available to field-upgrade a TH-T-718 to 718A specification.

Type Twin Hammer Driver
Hex ¼″ Quick Change
Air Inlet ¼″
OAL 6½″
Height 7″
Motor 6-Vane Rotor
TH-T-718 Series Screw Gun
Model Variants — fully reversible · belt hook · balanced design
TH-T-718 Standard
Free Speed 9,000 RPM
Torque 170 ft-lbs
Speed Control Fixed
Note Knob kit upgradeable
TH-T-718A Adjustable Speed
Free Speed 9,000 RPM
Torque 170 ft-lbs
Speed Control 4-Way Knob
Note —
TH-T-718XP Extended Performance
Free Speed 10,000 RPM
Torque 52 / 147 ft-lbs
Speed Control Fixed
Note Comfort grip · 2.2 lbs
Common to all 718 models Fully Reversible 6-Vane / Rotor Setup Belt Hook On Tool ¼″ Quick Change Coupler ¼″ Air Inlet 6½″ OAL × 7″ H Balanced for Reduced Fatigue

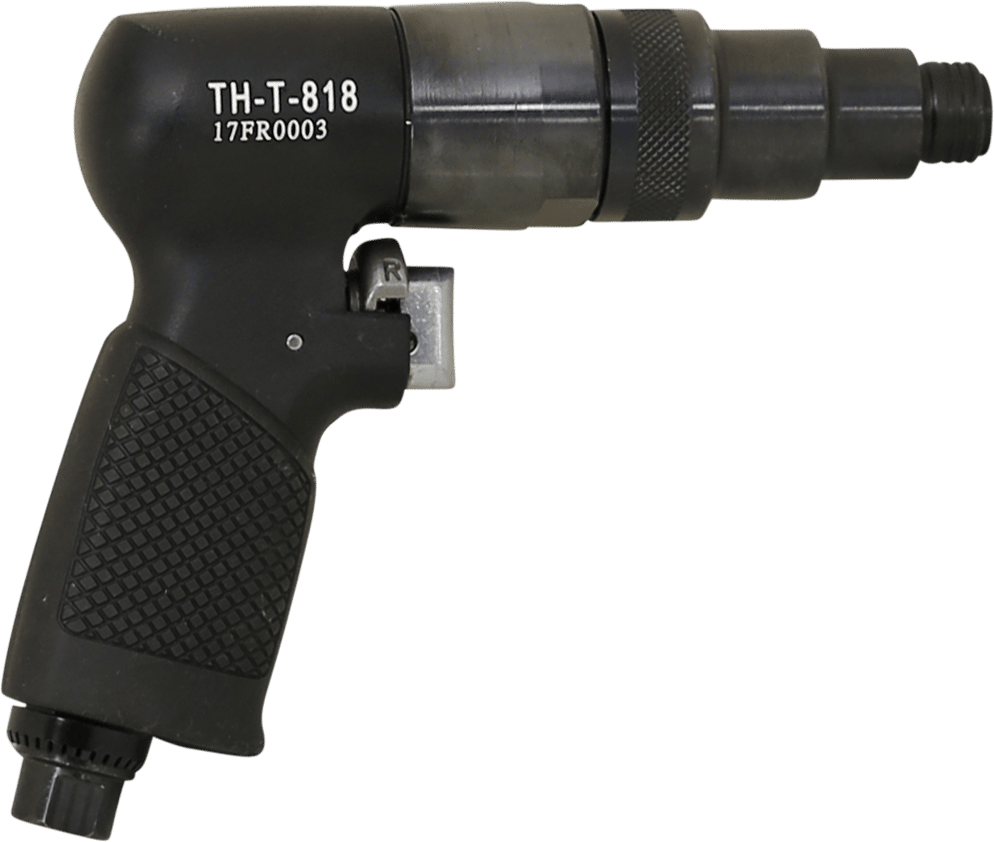

TH-T-818 Screw Gun

Heavy-duty positive-clutch screw gun engineered for durability in demanding production environments. Oversized cylinder holes with a large D/A cylinder pin extend service intervals. Hardened and ground 5-vane motor for longer motor life. Drive and driver clutches are identical, reducing operator fatigue by eliminating the need to adapt to asymmetric tooling.

RPM 1,800
Torque 33 ft-lbs
Clutch Positive
Hex ¼″ Quick Change
Air Inlet ¼″
OAL 7¼″
Height 6″
Motor 5-Vane
  • Large D/A cylinder pin, oversized cylinder holes
  • Positive clutch, reversible ¼″ Hex Quick Change
  • Ergonomic construction
  • Drive & driver clutches identical (reduces fatigue)
  • Balanced design for easy handling
  • 5-Vane motor — hardened & ground for longer life
  • Fully reversible
TH-T-818 Screw Gun

Drills

Air-Powered · Rotary

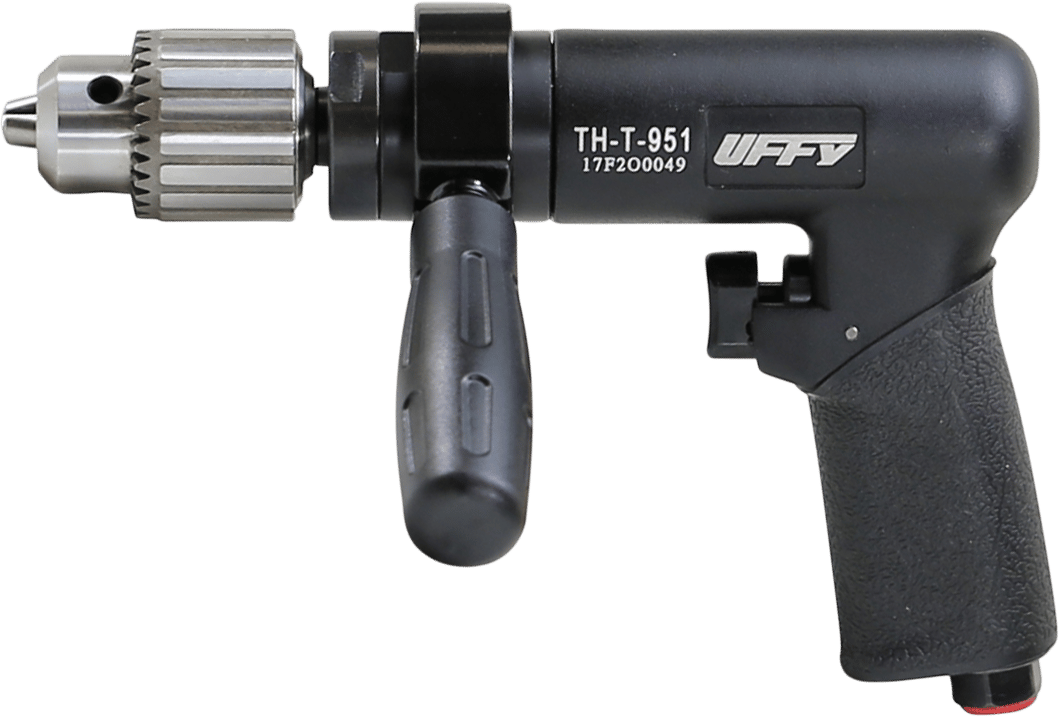

TH-T-951 Drill · Non-Reversible

Pneumatic rotary drill built for controlled-torque drilling in production environments. Identical drive and driver clutches reduce operator fatigue; 5-vane hardened motor extends service life.

Free Speed 1,900 RPM
Stall Torque 13.8 Nm
Air Inlet ⅜″–24 Thread
Chuck ½″ (sold separately)
OAL 8⅞″
Height 6″
Motor 5-Vane Hardened
TH-T-951 Drill

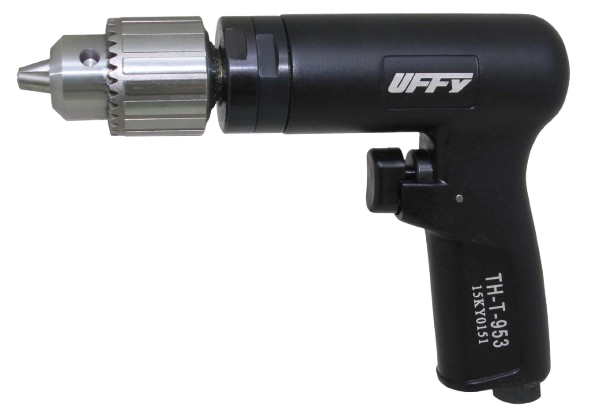

TH-T-953 Drill · Non-Reversible · High-Speed

High-cycle pneumatic drill with large D/A cylinder pin and oversized cylinder holes for improved air flow and longer motor life. Hex quick-change chuck mount accelerates bit swaps in production settings.

Free Speed 3,100 RPM
Air Inlet ¼″
Chuck Mount Hex Quick Change / ⅜″–24
Chuck Cap. ½″ (sold separately)
OAL 7¼″
Height 6″
Motor 5-Vane Hardened
TH-T-953 Drill
